Microscopy

MICRO MÉCANIQUE offers a comprehensive range of microscopy solutions, cameras, lenses, lighting, motorised stages, incubation chambers and accessories. We support you from selection to installation, including training and maintenance, to optimise your observations and protocols, from teaching laboratories to advanced research.

Electrophysiology & Neuroscience

For over 35 years, MICRO MÉCANIQUE SAS has been supporting researchers and laboratories in neuroscience, electrophysiology and optogenetics. We offer a comprehensive range of equipment (amplifiers, micromanipulators, microinjection systems, etc.) and comprehensive support: advice, installation, training and maintenance throughout France.

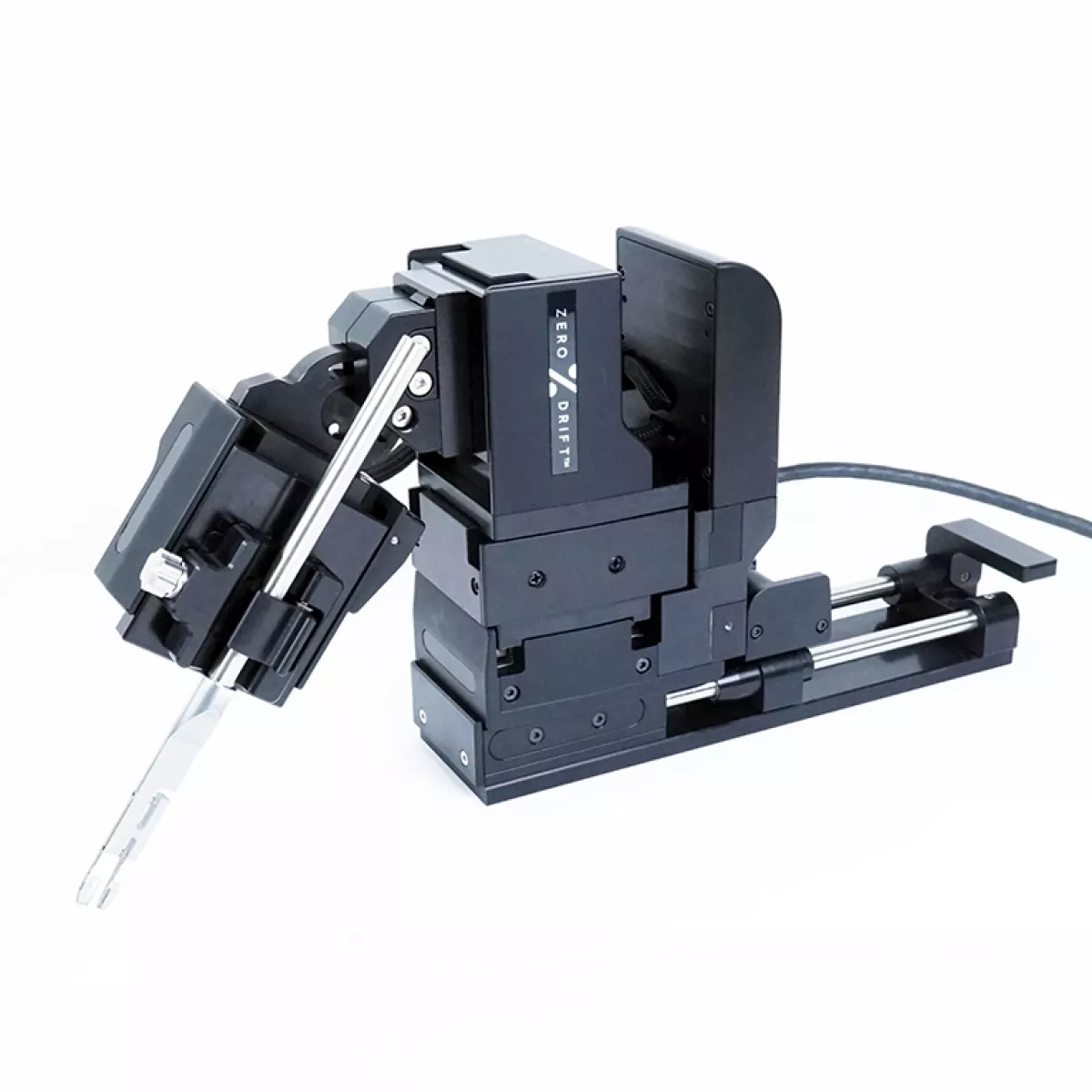

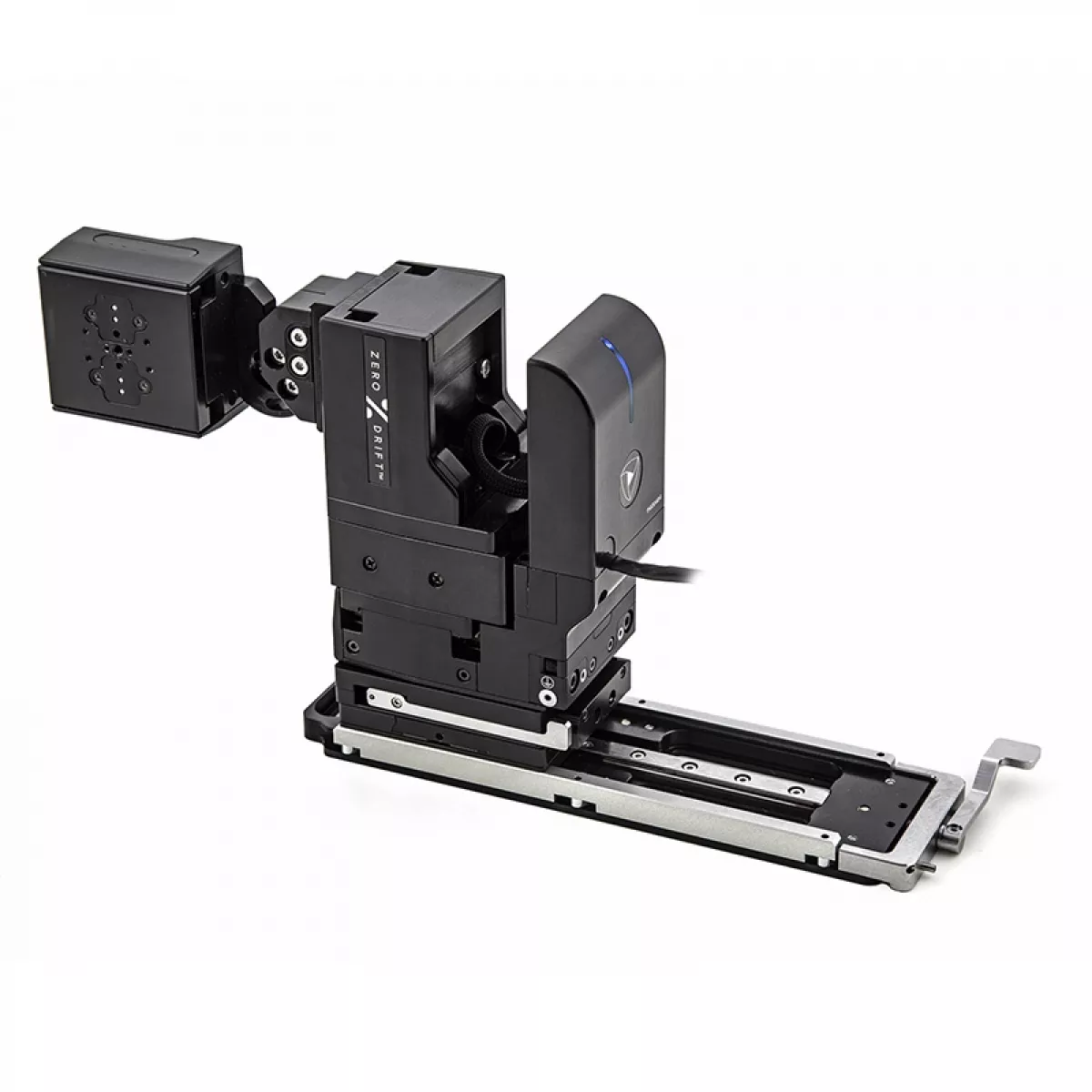

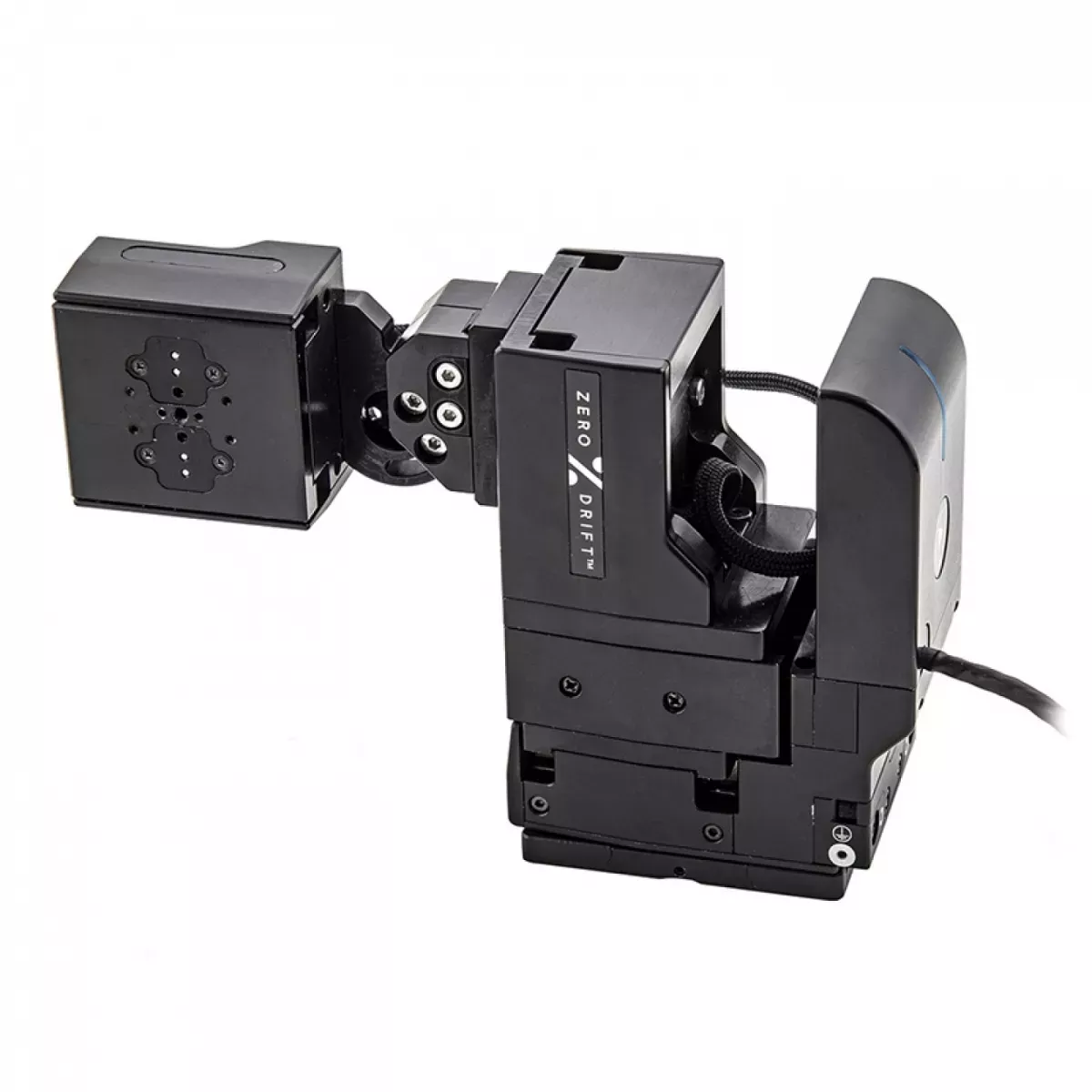

uMp-4 SENSAPEX motorised piezo micromanipulator

The uMp-4 SENSAPEX 4-axis piezoelectric micromanipulator is particularly suitable for stereotaxy thanks to its 4th physical axis with vertical angle capability (approach angle from 0 to 90°) in addition to all the other features of the uMp-3 micromanipulator.

The uMp 4 micromanipulator enables :

  • Probe insertion automatically in a single click at very slow speed
  • Minimises tissue damage
  • Saves a lot of time

uMp-4 piezo micromanipulator features

  • Positioning range: 20 x 20 x 20(x+20) mm3 (XYZ(+D))
  • Resolution: 5 nm
  • Max. speed: 5 mm/s
  • Load: 0 – 150 g
  • Actual approach angle: 0 – 90 degrees
