Digital stereotaxic system 68803
Improved version of the manual stereotactic frame with digital display module.

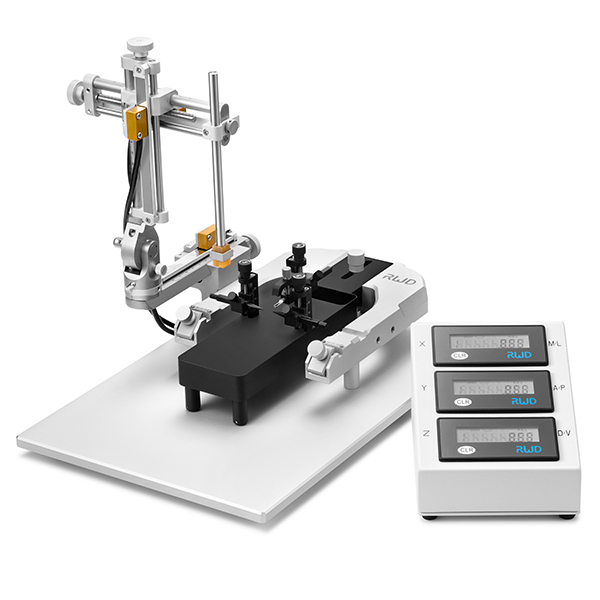

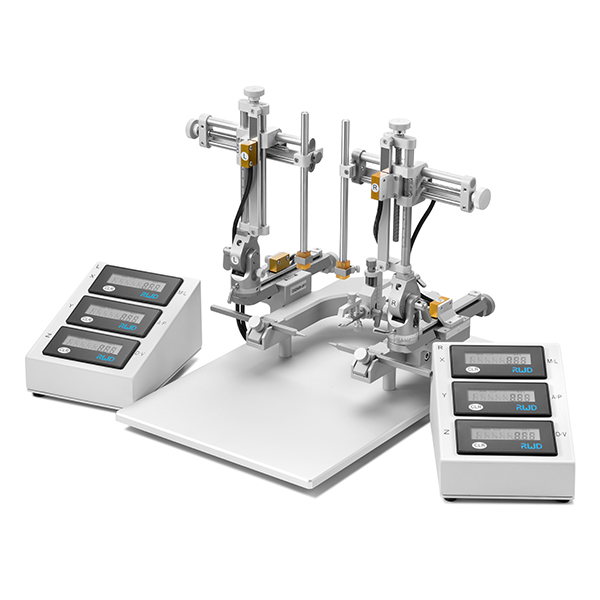

Description of the RWD 68803 / 68804 Digital Stereotactic System
Displacement sensor displays accurate measurements in real time (10 µm accuracy), eliminates manual re-reading, AA battery powered with no electronic interference.
Features of the RWD 68803 / 68804 Digital Stereotactic System
- Displacement accuracy: 10 µm
- Rapid adjustment of XYZ axes (80 mm travel, 0.1 mm resolution)
- Lockable rotations: vertical 180° / horizontal 360
- Double-threaded screws for smooth handling
- Engraved “UP” marking to prevent tilting
- Digital module with one-time reset, attachment compatible with pump, micro-camera and drill
Technical specifications of the RWD 68803 / 68804 Digital Stereotaxic System
| Caractéristique | Valeur |
|---|---|
| Displacement accuracy | 10 µm |
| XYZ race | 80 mm (each axis) |
| Power supply | AA battery (no electronic interference) |
| Lockable rotations | 180° vertical, 360° horizontal |
| Digital resolution displayed | 0.1 mm |
| UP marker | Engraved, anti-clockwise |
| Compatible accessories | Syringe pump, micro-camera, drill |
Applications
- Precise stereotactic positioning (rats, mice, etc.)
- Injections, imaging, craniotomies requiring fine reading
- Ergonomic improvement with digital indicator
Documentation
Brochure
PDF file – 8992 ko
