Digital stereotaxic system included rotation 69100

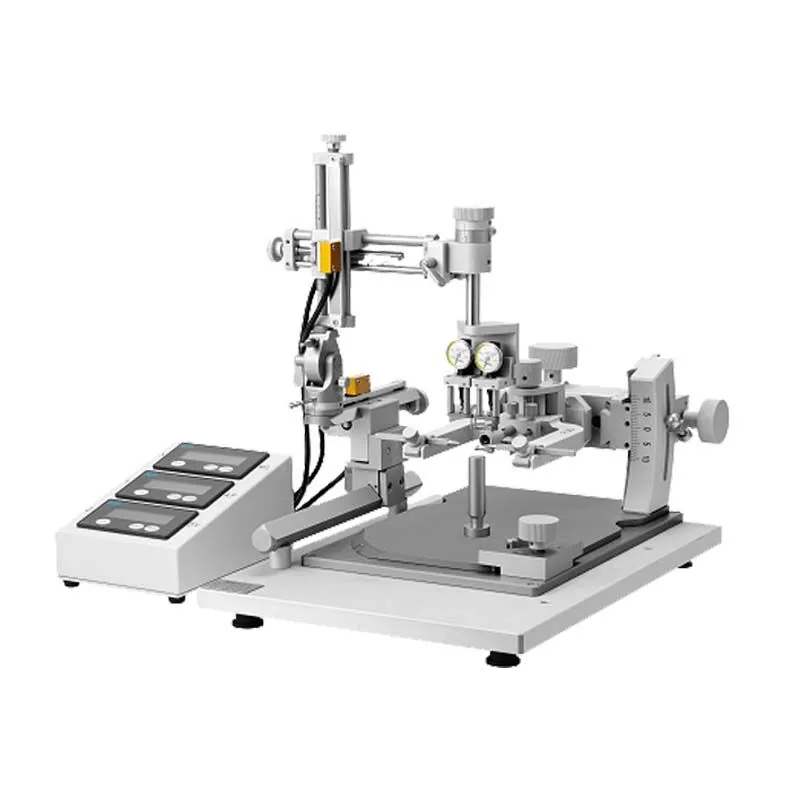

The RWD 69100 digital rotating stereotactic frame provides precise, multi-axis positioning for brain surgery in rats and mice. Featuring an integrated rotation system and high-resolution digital indicator, it offers fast, reliable alignment of the bregma-lambda plane, without repositioning. An external LCD screen provides immediate, accurate visual feedback. The whole system is designed to meet the demands of complex stereotactic manipulations.
Features of the Digital Stereotactic System 69100 including rotation
- Cranial level adjustment in a single rotary movement
- Digital alignment indicator with LCD display
- 0.01 mm resolution for high measurement accuracy
- Lateral and sagittal tilts ±30° / ±10
- 40× magnification lens included for visual inspection
- Wide, stable platform for animal mounting
Technical specifications of the Digital Stereotaxic System 69100, including rotation
| Caractéristique | Valeur |
|---|---|
| X/Y/Z movement range | 30 mm |
| Lateral tilt (Roll) | ±30° |
| Sagittal tilt (Pitch) | ±10° |
| Operating arm length | 80 mm |
| Tray dimensions | 400 × 325 mm |
| Magnifying glass | 40× |
| Digital display resolution | 0.01 mm |
Applications
- Stereotactic neurosurgery for mice and rats
- Quick and easy bregma-lambda alignment
- Injections, implantations, craniotomies with angular adjustment
- Stereotactic procedures requiring multi-axis precision
Documentation
Brochure
PDF file – 8992 ko
