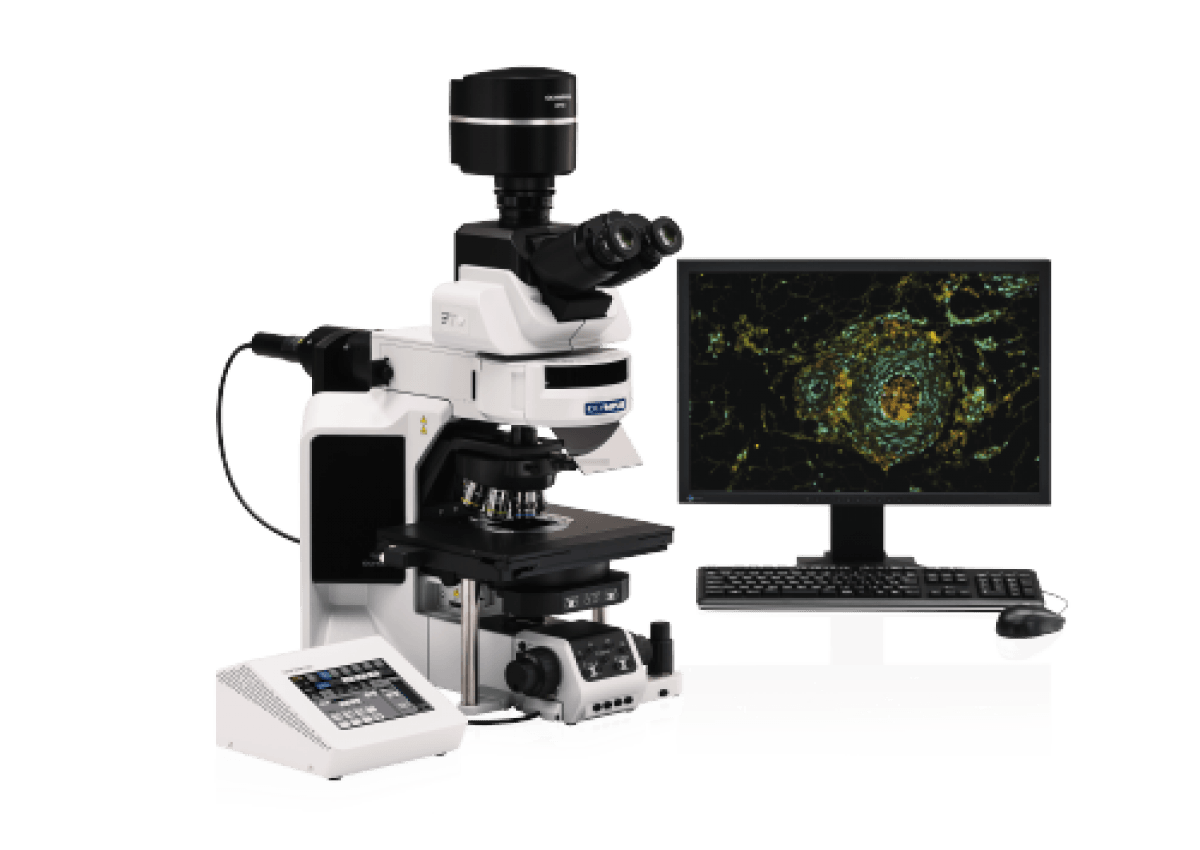

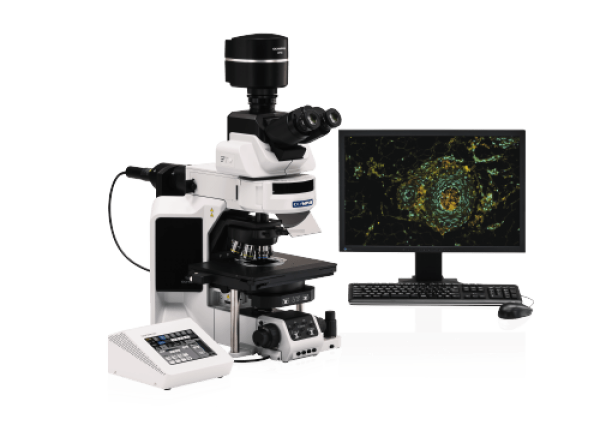

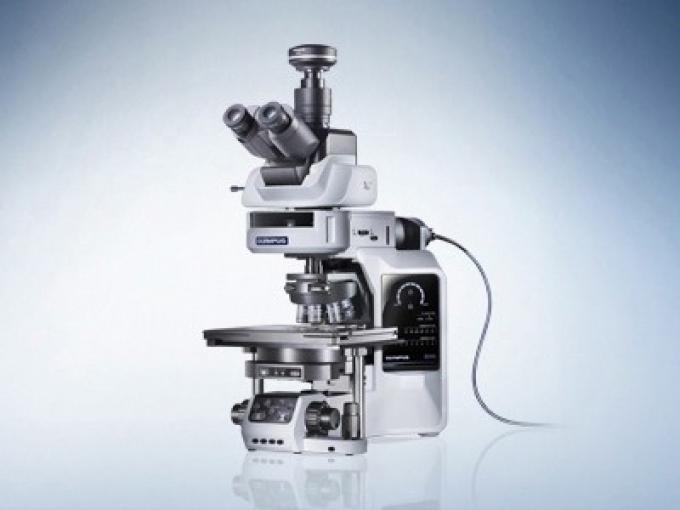

BX63 upright microscope – Evident-Olympus
- Customisable for brightfield, darkfield, phase contrast, fluorescence, differential interference contrast and single polarised light observations
- Tilting binocular or trinocular optical head
- The BX 63’s fully motorised system enables complex, multi-dimensional experiments to be automated
- The BX 63 microscope is easy to use: fast, efficient image capture
- the touch-panel controller enables observation parameters to be entered, simplifying repetitive tasks
- parameters are transferred to the cellSens software
- multi-channel images are acquired automatically
Features of the BX63 upright microscope
Control at your fingertips

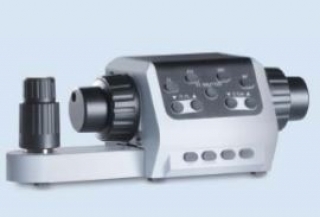

Touch screen controller
Detachable, freely positionable remote control unit for controlling :
- Focusing
- XY axis adjustment
- Choice of observation method
- Light intensity
- Capturing images
Motorised Z-axis accuracy
- Unique focus thanks to motorised lens turret movement along the Z axis
- Ability to capture Z-stacks and perform deconvolutions
Maximum stability and high-precision stage
- Fixed stage concept: the lens turret moves in the Z direction
- Compact, silent, ultrasonic stage (piezoelectric technology)
- Can also be moved manually for coarse adjustments
- Ideal basis for automating complex imaging procedures using cellSens software
Transis illumination feature
- Köhler transmitted light LED or 100W halogen lamp
- Fluorescent lighting with 100W mercury lamp or lighting with light guide
Accessories
- Dust cover
Documentation
bx53_bx63_recherche_fr_low_res
PDF file – 1482.3 ko
