CX33 upright microscope – Evident-Olympus
Ergonomic routine biological microscope – Comfort and efficiency

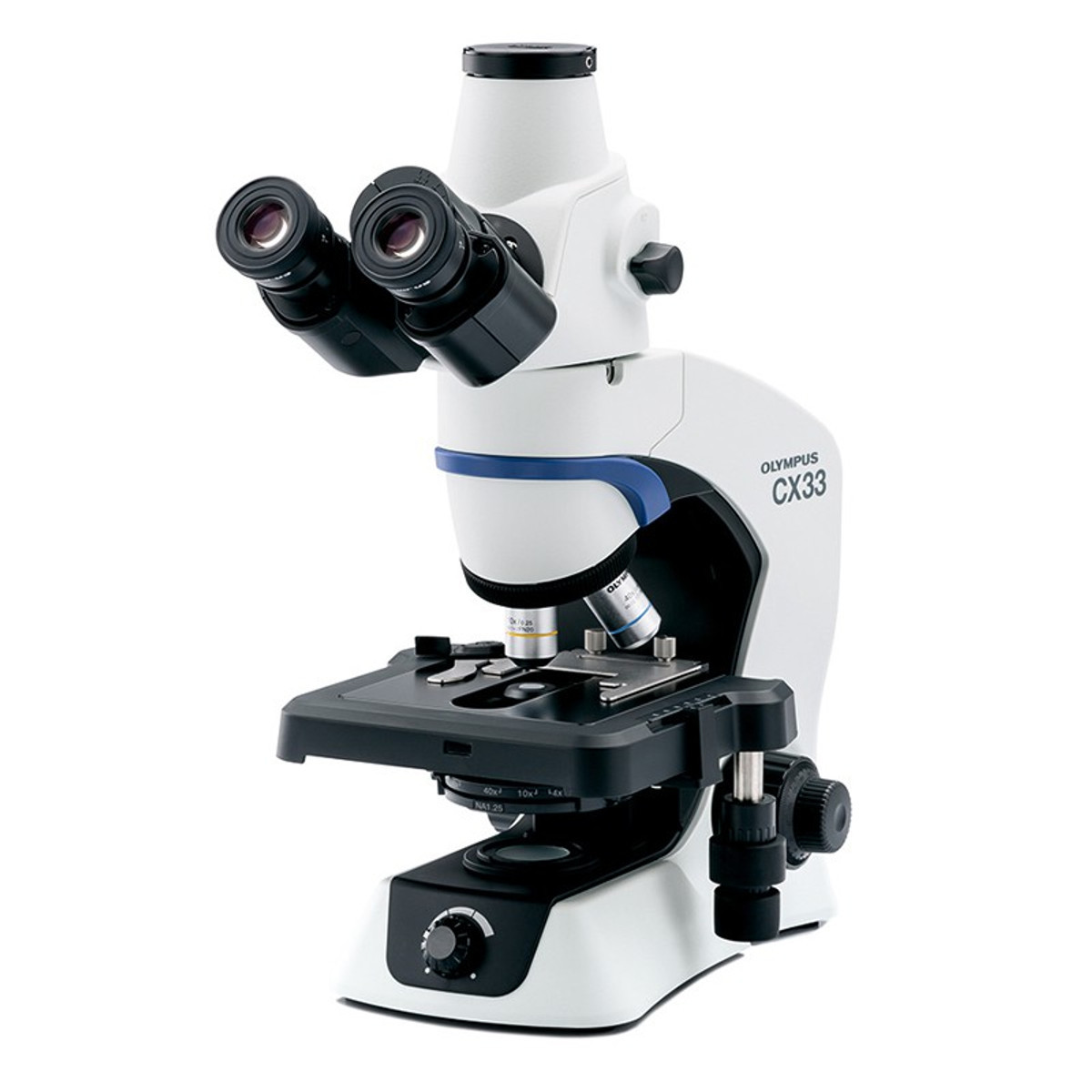

The EVIDENT Olympus CX33 microscope is designed for routine biological observations.
Its advanced ergonomics and optical performance make it ideal for laboratory, educational and clinical applications. Thanks to its UIS2 optical system and long-life LED illumination, it provides clear, natural images while reducing user fatigue.
Description of the CX33 upright microscope

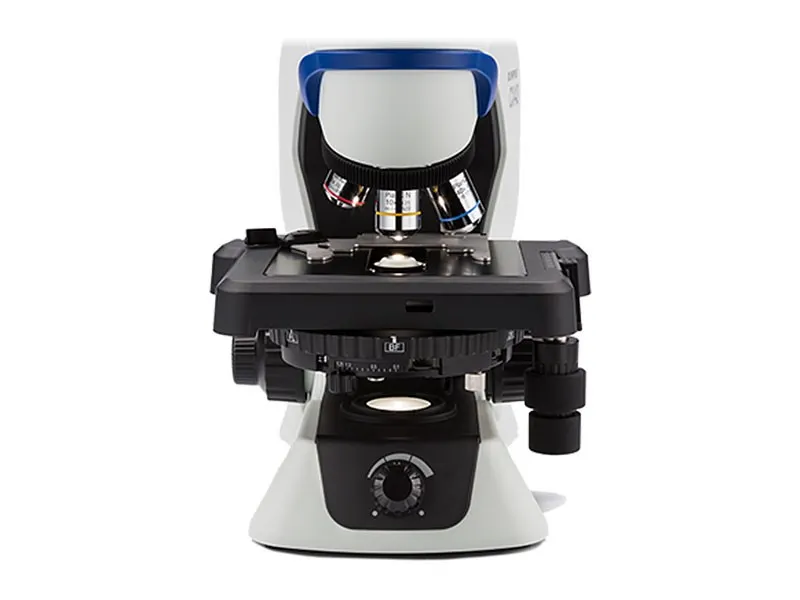

The CX33 is designed for optimum comfort during prolonged observation. Its low-profile stage and ergonomic focusing wheel make it easy to use with your forearms resting on the desk. The inward-facing lens turret makes it easy to change lenses while maintaining a comfortable working position. The universal condenser makes it easy to switch between different observation methods without complex adjustments.
Applications
- Brightfield and darkfield observations
- Routine biological laboratory analysis
- Life science teaching
- Clinical and diagnostic applications
Technical specifications of the CX33 – Evident-Olympus
| Caractéristique | Valeur |
|---|---|
| Observation method – | Light background, Black background |
| Illuminator | Köhler transmitted light |
| Coarse adjustment wheel travel | 15 mm |
| Features | Quick focus stop Coarse focus knob torque adjustment |
| Lens turret | Manual adjustment – Standard (4 positions) |
| Turntable type | Manually adjustable plates on the right-hand side |
| Board integration | Integrated |
| Condenser – Manual adjustment | O.N. 1.25 (4X-100X) |
| Standard field | FN20 ✓ |
| Observation head – Tilt angle | 30° |
| Observation head – Optical path selection | 0%:100%, 100%:0% |
| Observation head – Interpupillary distance adjustment | 48 mm to 75 mm |
| Dimensions (W × D × H) | 211 mm × 397 mm × 430 mm (8.3 in × 15.6 in × 17 in) |
| Weight | Approx. 7.0 kg (15.4 lb) |
| Planachromatic lens – 4X | O.N. 0.1, working distance 27.8 mm |
| Planachromatic lens – 10X | O.N. 0.25, working distance 8.0 mm |
| Planachromatic lens – 20X (optional) | N.O. 0.4, working distance 2.5 mm |
| Planachromatic lens – 40X | NA 0.65, W.D. 0.6 mm |
| Planachromatic lens – 100X oil (optional) | O.N. 1.25, working distance 0.13 mm |
| Tube – Binocular/trinocular tilt | 30° |
| Tube – Tilting binocular | 30°-60° |
| Light selection (camera: observation) | 50% : 50% |
| Interpupillary adjustment | 48-75 mm |
| Dimensions (W × D × H) | 211 mm × 376 mm × 393 mm (8.3 in. × 14.8 in. × 15.5 in.) (standard) |
| Weight | Approx. 7.3 kg (16.1 lb) |
| Standard delivery | Objectives, eyepieces, trinocular head, stage, condenser |
