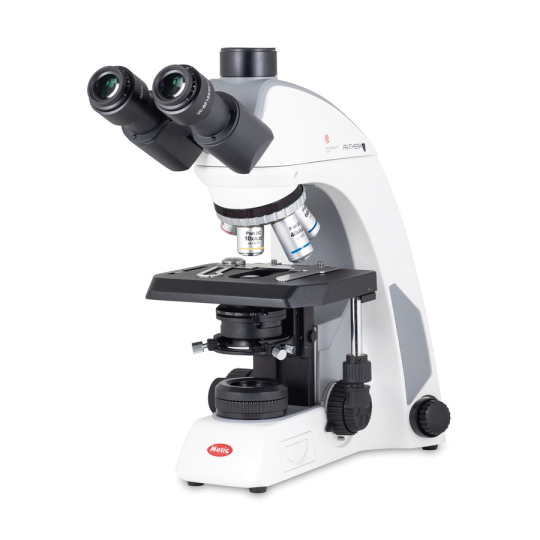

Classic Motic Panthera C2 upright microscope
The Motic Panthera C2 microscope is designed for the modern laboratory, offering an Infinity optical system, replaceable LED illumination and binocular or trinocular options.
It combines ergonomics, performance and durability for research and teaching.
Features of the Motic Panthera C2 microscope
- Infinity optical system
- User-replaceable 3W LED illumination
- Inverted objective revolver
- Coaxial macro/micro focusing with adjustable stop

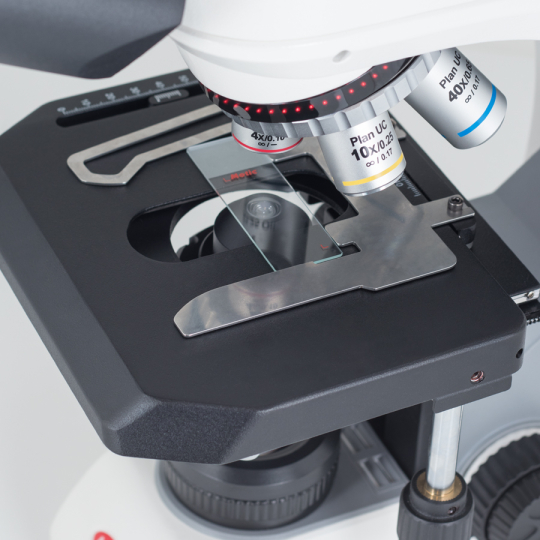

- 175×140 mm mechanical stage

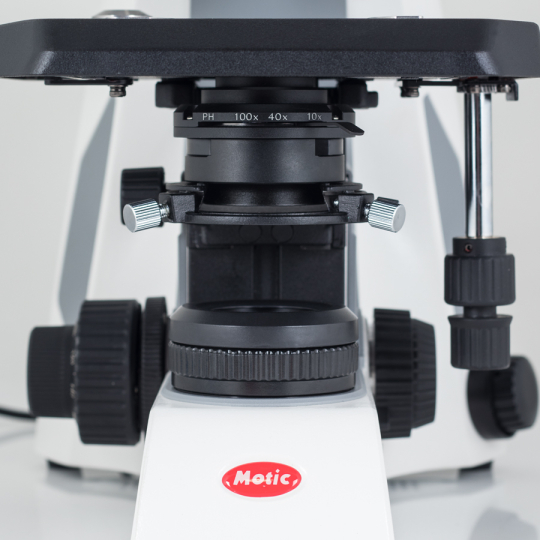

- Abbe N.A. 1.25 condenser with iris diaphragm
Technical specifications of the Motic Panthera C2 microscope
| Caractéristique | Valeur |
|---|---|
| Optical system | Infinity Corrected |
| Head | Binocular / Trinocular |

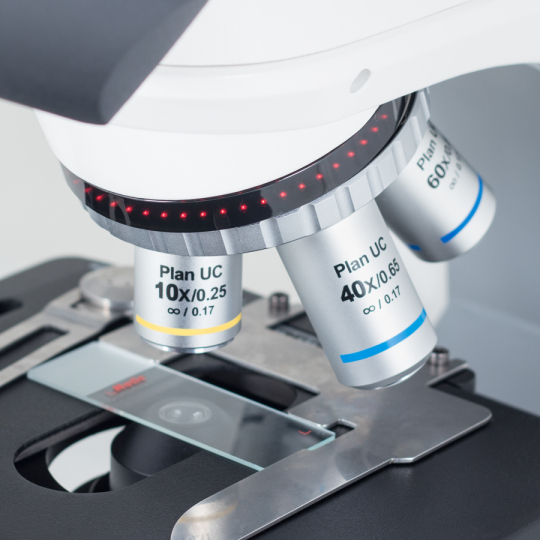

| Objectives | EC-H Plan 4x, 10x, 40x, 100x Oil |

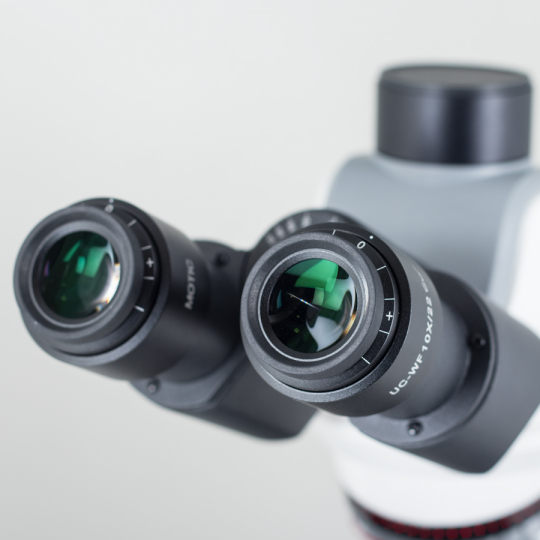

| Lenses | N-WF10X/22mm |
| Lighting | LED 3W |
| Condenser | Abbe N.A. 1.25 |
| Focus | Macro/Micro coaxial |
| Turntable | 175×140 mm |
| Power supply | 100-240V AC |
Applications
- Laboratories
- Biological research
- Higher education
